Glossary
solutions architect/architect - a person who logs into Feature Studio UI and creates an architecture and deployment
feature author - a person who makes the feature and uploads it to Pratexo via feature-adapter
feature attribute - any of the attributes present in values.yaml
feature - an installable piece of software, like kibana, modbus2mqtt
Rationale
An architect that uses a feature should have an option to configure a feature. By configuring I mean changing their e.g. security or networking attributes .
On the other hand, the architect should not be aware of the complexity of the feature. They should only be presented with a subset of configurable attributes.
Feature author should be able to decide which attributes are configurable by the architect
Feature author should be able create logic to transform any file of that feature based on the input from the architect in the UI
The two files that configure all of this
kibana
└── 7.17.2
├── manifest.yaml
└── replicaSet
├── helm
│ └── values.yaml
└── schemas
-------- HERE -------
├── ui.schema.json <----
└── ui.schema.midlayer.json <----
Reference in manifest.yaml
The files must be referenced in manifest.yaml as shown below.
id: kibana
name: kibana
organization: "com.pratexo"
version: 7.17.2
description: Kibana helm chart
deployments:
- kind: helm_chart
featureId: kibana
version: 7.17.2
uiSchemaRef: schemas/ui.schema.json
uiSchemaMidlayerRef: schemas/ui.schema.midlayer.json
rest_removed: `for brevity`
ui.schema.json

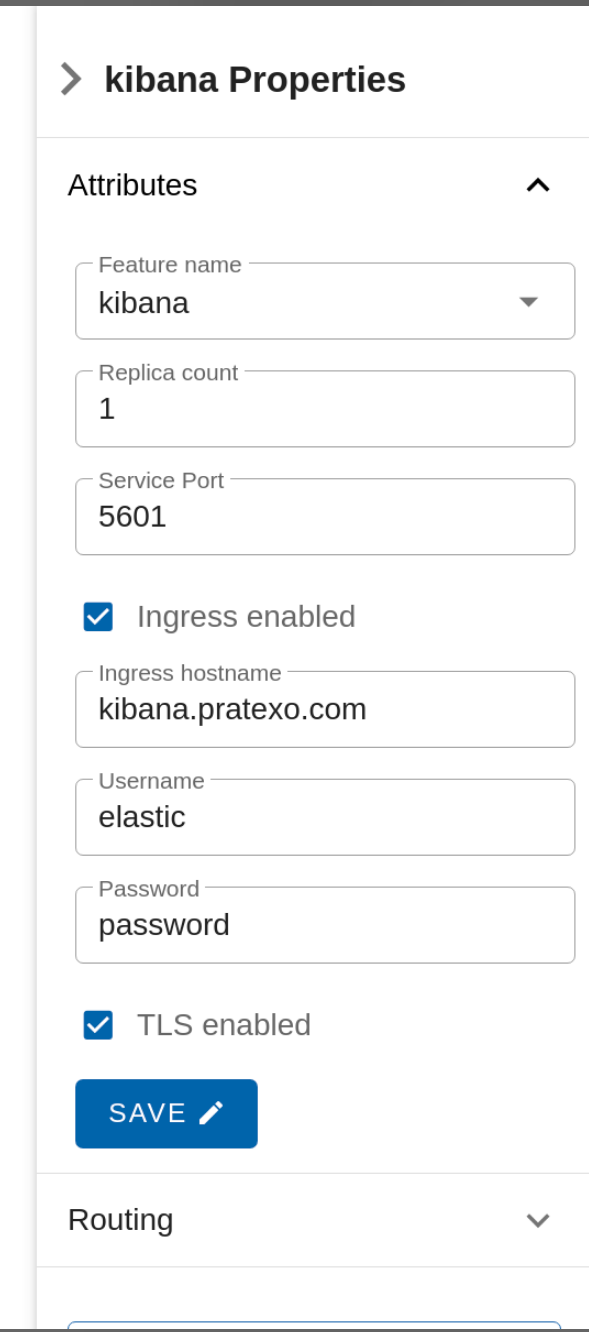

the file represents the attributes configurable by the architect. These attributes translate 1:1 to the view in Feature Studio UI.
{
"$schema": "http://json-schema.org/draft-07/schema#",
"title": "Kibana",
"properties": {
"featureName": {
"type": "string",
"title": "Feature name",
"enum": [
"kibana"
],
"default": "kibana"
},
"replicaCount": {
"type": "number",
"title": "Replica count",
"default": 1
},
"servicePort": {
"type": "number",
"title": "Service Port",
"default": 5601
},
"ingressEnabled": {
"title": "Ingress enabled",
"type": "boolean",
"default": true
},
"ingressHostname": {
"type": "string",
"title": "Ingress hostname",
"default": "kibana.pratexo.com"
},
"username": {
"type": "string",
"title": "Username",
"default": "elastic"
},
"password": {
"type": "string",
"title": "Password",
"default": "elastic"
},
"tlsEnabled": {
"type": "boolean",
"title": "TLS enabled",
"default": true
}
}
}
It is possible to conditionally display attributes in the UI, like so:
"automaticUpgrade": {
"type": "boolean",
"title": "Automatic upgrade",
"path": "/keel/enable",
"default": false
},
"keelTrigger": {
"type": "string",
"title": "AutomaticUpgrade trigger",
"path": "/keel/trigger",
"default": "poll",
"enum": [
"poll"
],
"conditions": [
{
"path": "/keel/enable",
"value": true
}
]
}
ui.schema.midlayer.json
the file represents patches to files in output directory based on the input from the UI
the input from the user becomes a variable named userInput in the ui.schema.midlayer.json file
given the following property in the ui.schema.json
{
"loggingPath":{
"type": "string",
"title": "Path where to store logs locally",
"default": "/var/log/pratexo/mqtt-2-influxdb-adaptor"
}
}
ui.schema.midlayer.json should follow the format:
{
"Path where to store logs locally": {
"values.yaml": [
{
"title": "Set Path where to store logs locally",
"comparison": [
{
"type": "always"
}
],
"operations": [
{
"op": "copy",
"from": "/externalVariables/userInput",
"path": "/self/Logging/Path"
}
]
}
]
}
}
